| Model | Lift capacity (kg) | Load centre (mm) | Std. lift heights (mm) |
|---|---|---|---|
| PSL 125 | 1250 | 600 | 1690 - 2090 |
| PSD 125 | 1250 | 600 | 1690 - 2090 |
| PSD 160 | 1600 | 600 | 1690 - 2090 |
| PS | 1250 | 600 | 2690 - 3590 |
| PSH 160 | 1600 | 600 | 2900 - 4800 |
| PSH 200 | 2000 | 600 | 2900 - 4800 |

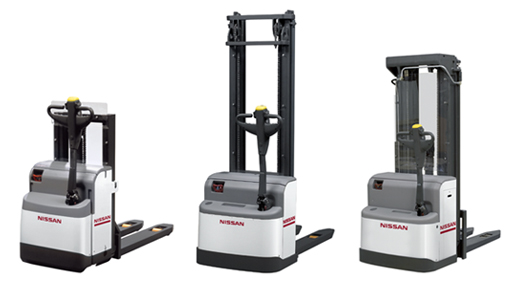

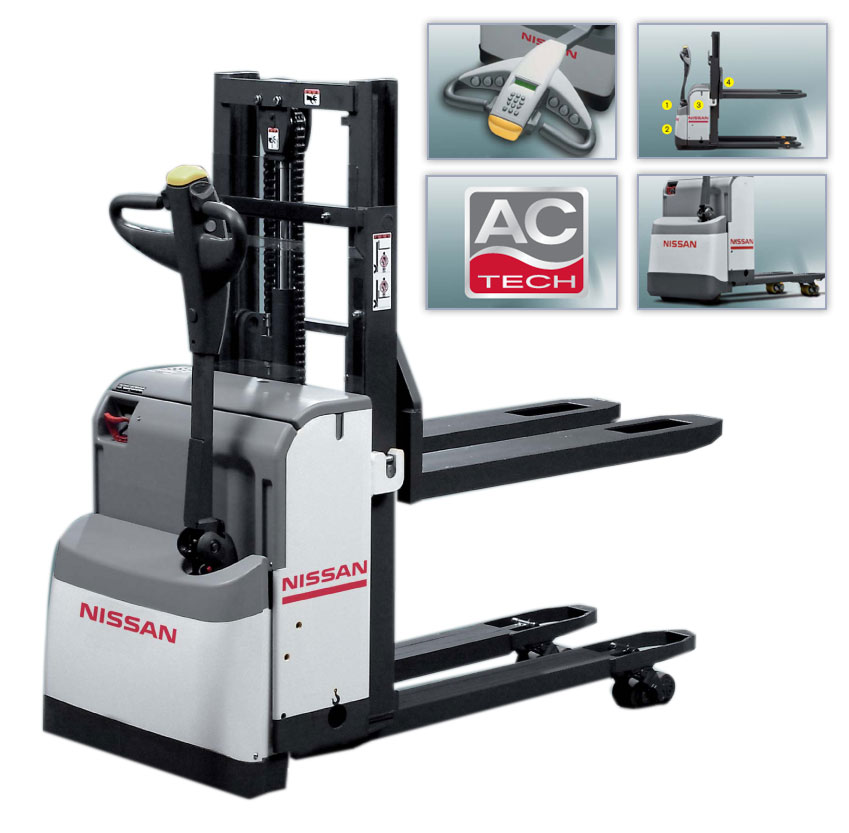

Nissan’s PSL and PSD compact pedestrian
stackers are highly versatile, providing lowcost
solutions for medium height stacking
applications, short, medium and long
distance travel, unloading and occasional
order picking. PSL for single pallets and PSD
for double pallet handling.
The modern design of these models includes
specially rounded edges to safeguard
personnel, prevent damage to products and
allow for easy cleaning.
An ideal choice for applications requiring
medium height pallet stacking (to 3.5 metres),
occasional order picking and short, medium
and long distance travel.

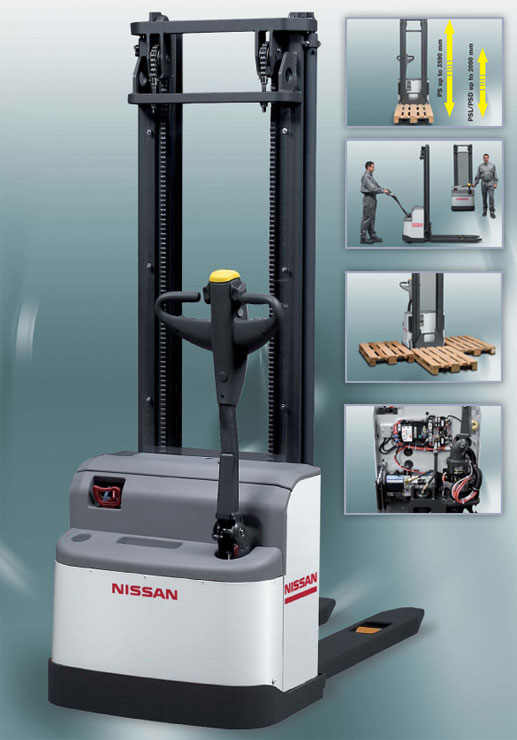

Just 800 mm wide and 1898 mm long
with forklength of 1200 mm, the Nissan PS
pedestrian pallet stacker is stable to lift
heavy loads but highly manoeuvrable to
work in confined spaces.
The tiller arm is offset, enabling the operator
to walk safely next to the truck with the tiller
in his right hand, with all controls for lifting
and lowering close to hand in the tiller head.
Intelligent electronics add to truck control
and diagnostics, while the low chassis allows
the operator the best view of the forks at all
times.

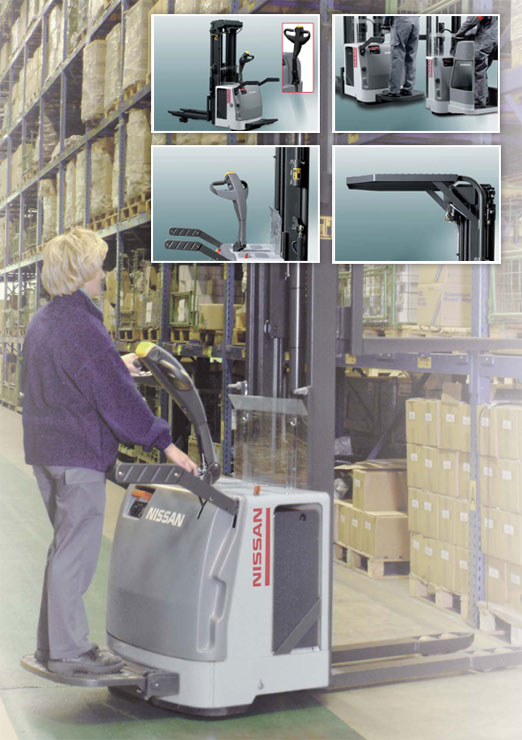

Nissan’s heavyweight pedestrian pallet
stacker, with an impressive lift capacity
up to 2.0 tonnes. Wide range of handling
applications including loading and unloading,
internal pallet transfer, stacking up to 4.8
metres and occasional order picking.
Robust and powerful, the Nissan PSH is still
highly manoeuvrable. Just 895 mm wide, its
remarkably small turning radius makes it an
ideal choice for locations where loads can be
heavy yet space can still be restricted.
Modern design includes specially rounded
edges to prevent damage to personnel and
products and allows for easy cleaning.
