LX Series

Technologies for a safer, cleaner workplace

Nissan's advanced Compact LX Series offers an array of new technology and design to provide a safe, comfortable and productive space for both you and your colleagues in the surrounding area. Protecting and sustaining the environment is important to you and to us.

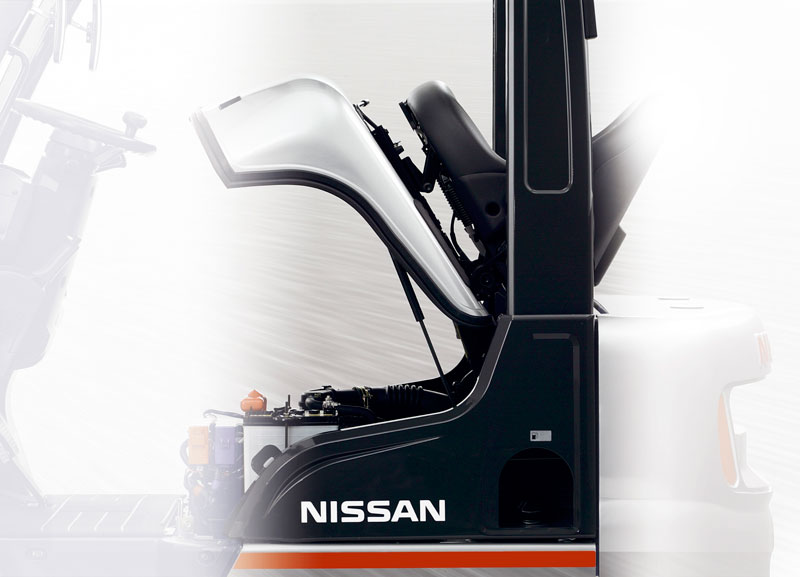

Nissan approaches this responsibility with the conviction that sound environmental policy is at the core of sound business practice. This is evidenced in the Compact LX Series' electronic controlled engines, delivering exceptionally low emissions levels - well below the stringent requirements of the USA Environmental Protection Agency (EPA). It means that these forklift trucks can be used in locations where some of the strictest pollution controls are in force. The exhaust system and counterweight have been designed especially to direct heat away from the operator's face when driving in reverse.

The Cushioned Stability Control (CSC) offers enhanced lateral stability which provides confident driving control when turning the forklift. Additionally, the CSC system absorbs shocks thereby assisting you to have a smooth, stable ride. The seat actuated Auto-Mast Lock system, provides optimum safety for a parked load from the moment you leave the seat. A non-skid step made from perforated steel allow safe and secure entry and exit.

• Compact All-rounder
• Very tight turning radius and excellent truck stability for optimal use of storage space
• Standard 3-way catalyst providing the market's lowest emissions levels
• Low noise levels for minimum operator fatigue
• Extensive safety features such as maintenance free Cushioned Stability Control
• Optimal fuel consumption via the electronically controlled Nissan LPG-engine

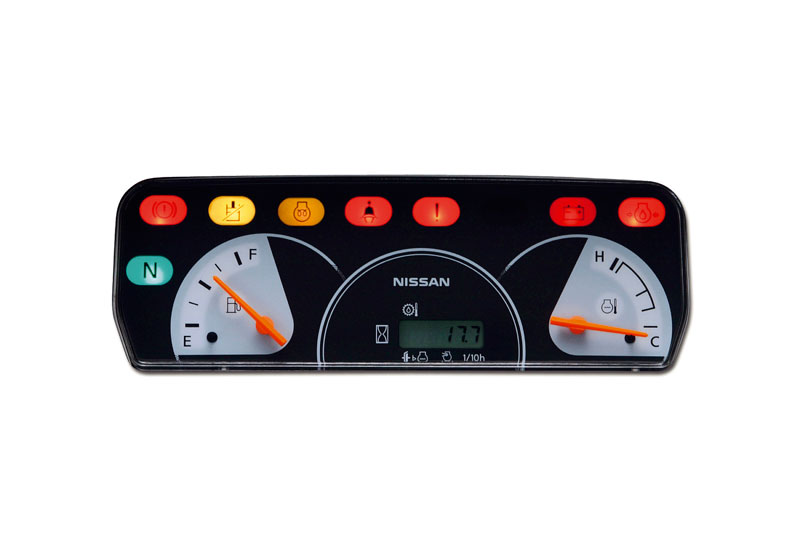

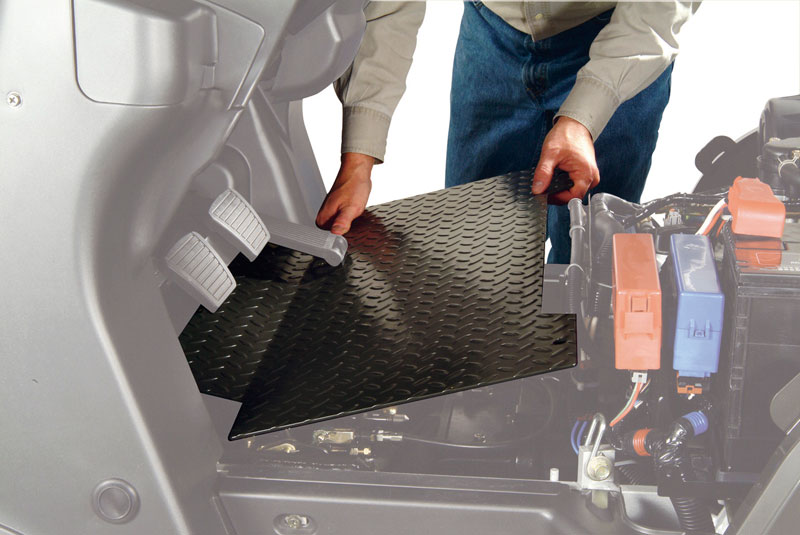

• Simplified maintenance operations through digital maintenance diagnostics

Model - LPG only		CL01 - CUSHION TYRES
Load capacity	kg	1500	1750	2000
Engine (NISSAN)		K21	K21	K21
Load centre	mm	500	500	500
Overall width	mm	970	970	970
Turning radius	mm	1735	1765	1800
Overhead guard height	mm	2060	2060	2060

Model - LPG only		CL02 - CUSHION TYRES
Load capacity	kg	2000	2500	2750	3000	3250	3000*	3500*	3600*
Engine (NISSAN)		K21/K25	K21/K25	K21/K25	K25	K25	K25	K25	K25
Load centre	mm	500	500	500	500	500	500	500	600
Overall width	mm	1070	1070	1095	1095	1115	1115	1165	1165
Turning radius	mm	1930	1990	2020	2050	2070	2055	2095	2130
Overhead guard height	mm	2085	2085	2085	2085	2085	2090	2090	2090

Model		AL01	AL02
Load capacity	kg	1600	2500
Engine		K15	K21
Load centre	mm	500	500
Overall width	mm	1035	1175
Turning radius	mm	1850	2030
Overhead guard height	mm	2105	2090
Tyres		Pneumatic	Pneumatic



•
•
•
•
•
•
•
•
•
•
•
•
•
•

• The proven leader

  The Compact LX series is a reflection of Nissan's continuing commitment to designing and delivering products of the highest value that incorporate the most advanced technology available in our industry. Backed by years of experience and expertise in the successful development of the latest ultra low emission engine systems and combined with our tradition of rugged, reliable construction, Nissan's Compact LX Series has become the new benchmark, others can only follow. .

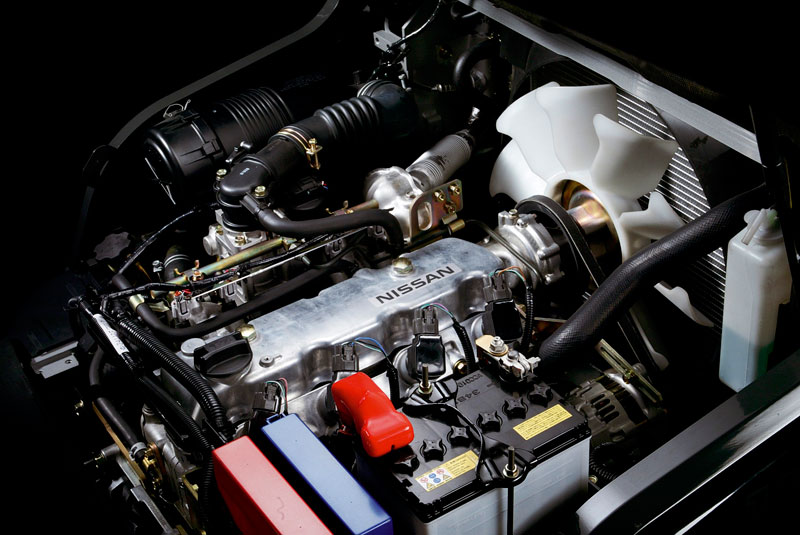

• Industry Leading Engine Technology including Standard 3-Way Catalyst

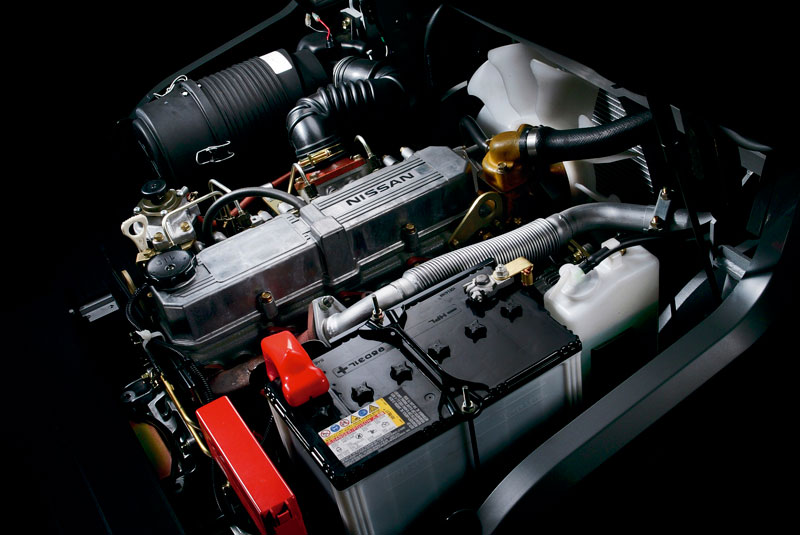

  To ensure minimum exhaust emissions, the Compact LX series’ LPG fuel injection system relies on engine sensors and the Engine Control Module (ECM) to maintain and deliver the best air/fuel ratio within the combustion chamber. By accurately delivering the right ratio, the engine can produce precise combustion, resulting in better fuel efficiency as well as exceptionally low emissions

• Ultra Low Exhaust Emission Levels

  Based on Nissan’s extensive automotive experience, the Compact LX Series is equipped with the latest electronic controlled engines. Together with the standard 3-way catalyst, extremely low levels of NOx, HC and CO emissions are delivered for a cleaner, safer working environment. These exceed all USA EPA Tier I requirements, the world's most strict forklift regulations.

• Maintenance Free Cushioned Stability Control (CSC)

  A rubber dampener between the rear axle and frame helps provide exceptional lateral stability while making turns. Best of all, this exclusive Nissan feature is maintenance free.

• Auto-Mast Lock

  This standard seat-actuated system automatically locks lifting and tilting operations when the operator exits the truck, to prevent unsafe mast and fork operations. Once the operator is seated again, hydraulic functions can be fully utilized.
