Model | TX Series | ||||||||
---|---|---|---|---|---|---|---|---|---|
Model name | TX-13 | TX-15 | TX-15 | TX-16 | TX-18 | TX-18 | TX-20 | ||
Load capacity @ 500 mm | kg | 1250 | 1500 | 1500 | 1600 | 1750 | 1800 | 2000 | |
Wheelbase | mm | 1195 | 1195 | 1300 | 1410 | 1300 | 1410 | 1410 | |
Overall width | mm | 1070 | 1070 | 1070 | 1090 | 1070 | 1120 | 1120 | |
Turning radius | mm | 1420 | 1420 | 1525 | 1635 | 1525 | 1635 | 1635 | |
Overhead guard height | mm | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 |
Battery/Motor specifications | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model name | TX-13 | TX-15 | TX-15 | TX-16 | TX-18 | TX-18 | TX-20 | ||
Load capacity @ 500 mm | kg | 1250 | 1500 | 1500 | 1600 | 1750 | 1800 | 2000 | |
Battery capacity (std) | V/Ah | 48/375 | 48/430 | 48/460 | 48/625 | 48/460 | 48/750 | 48/750 | |
Battery capacity (opt) | V/Ah | t.b.d. | t.b.d. | t.b.d. | t.b.d. | t.b.d. | t.b.d. | t.b.d. | |
Electric Motor (driving) | kWxunit | 5.0 X 2 | 5.0 X 2 | 5.0 X 2 | 5.0 X 2 | 5.0 X 2 | 5.0 X 2 | 5.0 X 2 | |
Electric Motor (lifting) | kW | 8.0 | 8.0 | 8.0 | 11.0 | 8.0 | 11.0 | 11.0 |

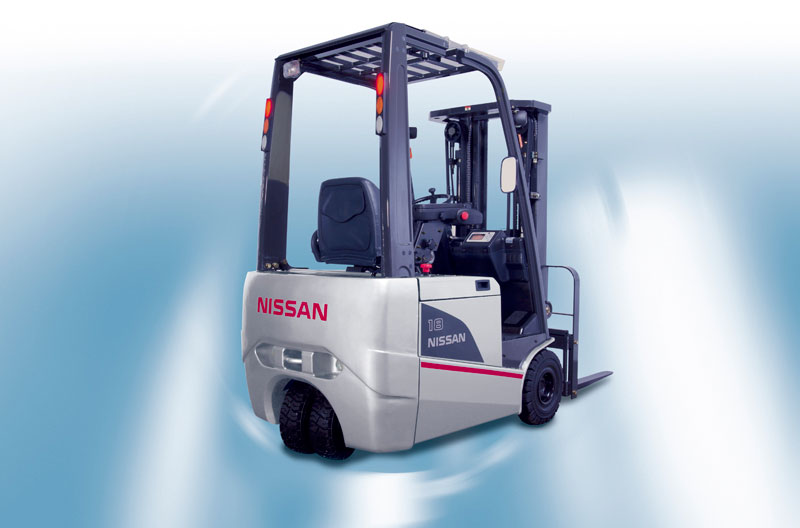

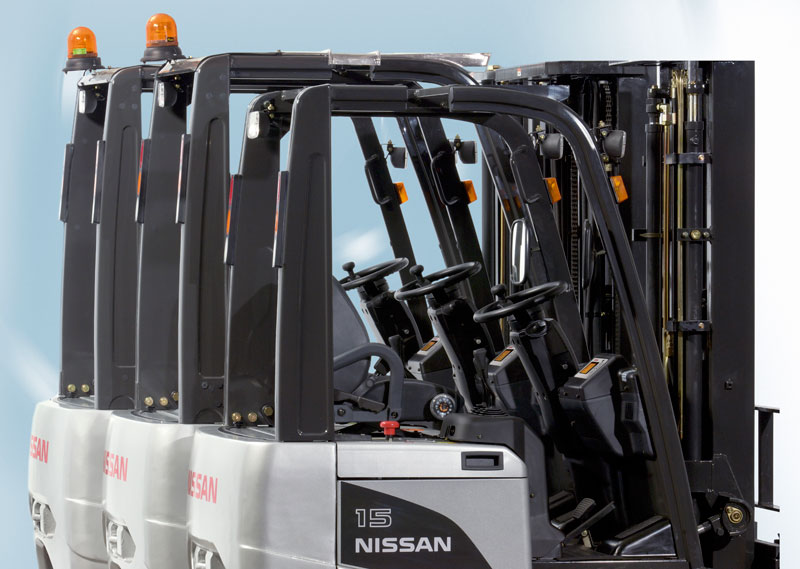

A new era in electric powered forklift trucks
is born with the introduction of the all-new

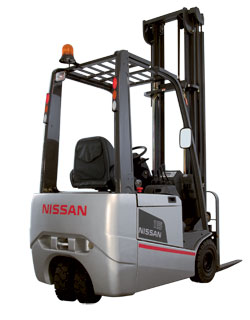

AC powered 3-wheel TX series from Nissan.
With new features and new levels of comfort,
safety and design, it makes the operator even
more secure - and your materials handling
operation even more productive.
The Nissan TX three-wheeler is designed to deliver high productivity at very low cost of ownership.
Key elements towards achieving this are:

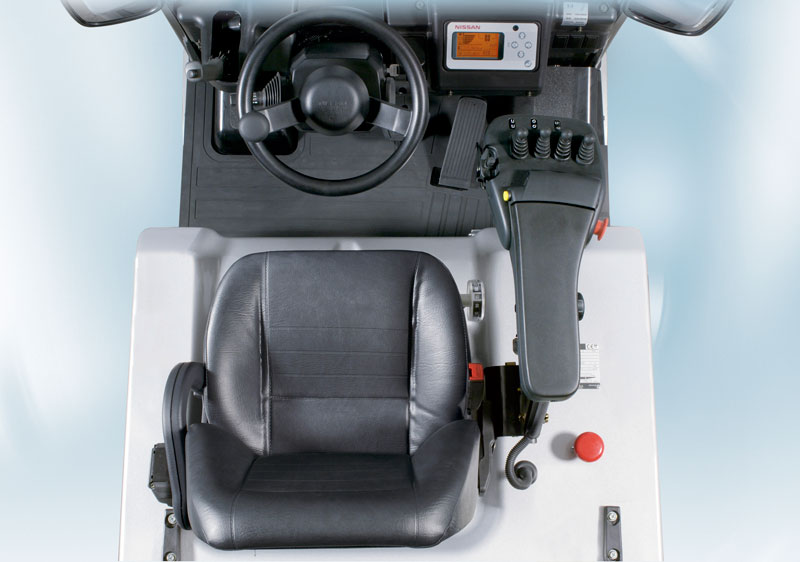

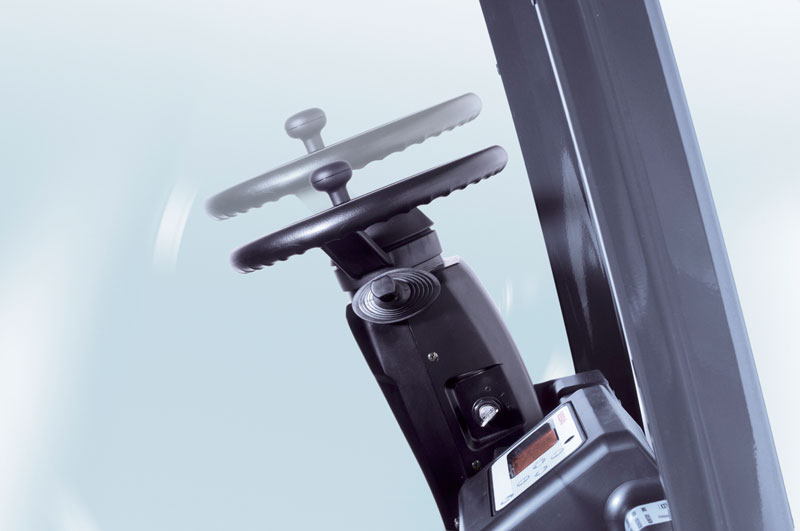

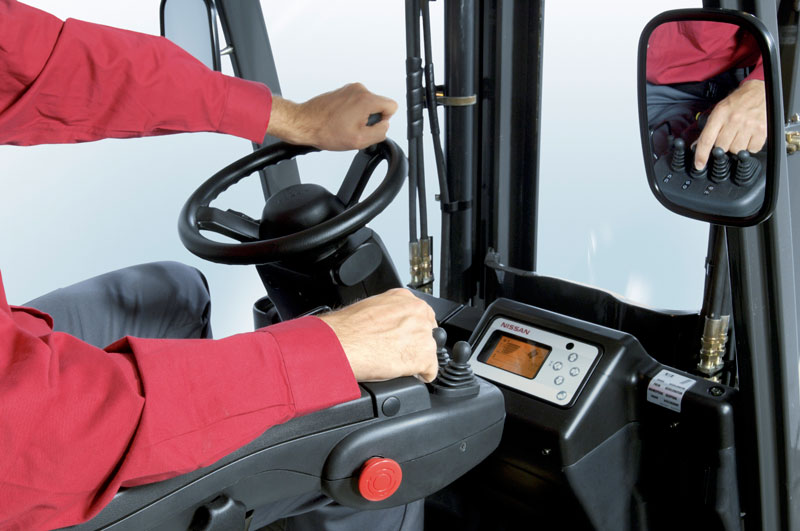

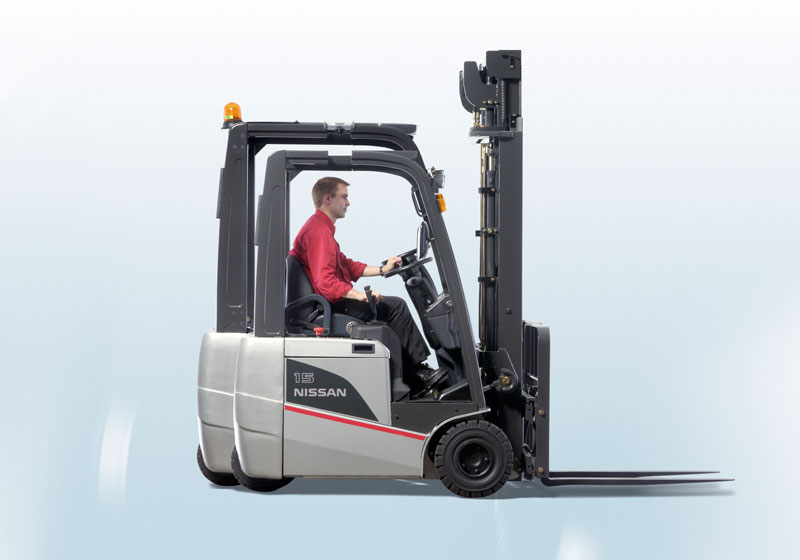

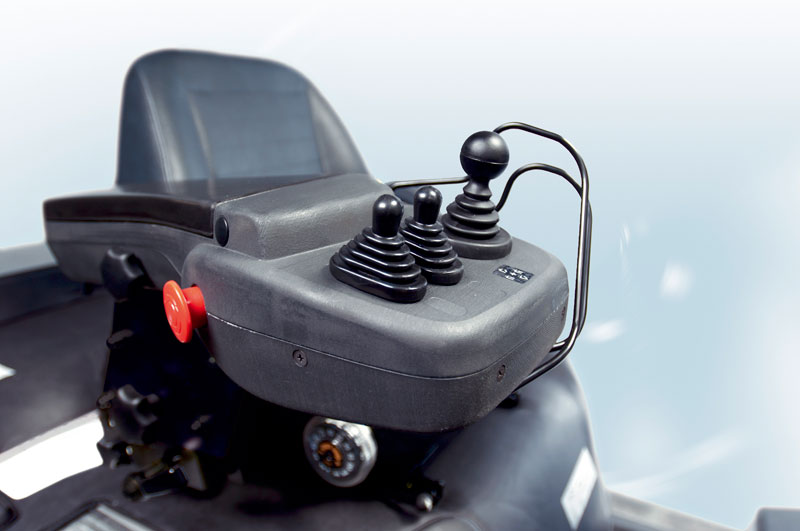

Supreme operator comfort and ergonomics An excellent operator’s environment has always been paramount in Nissan’s design philosophy. A wide step and ample legroom make access to the wide-space cabin easy, while the multi-adjustable suspension seat and the adjustable steering wheel allow each operator to select his ideal driving position.
Safety is vital to any forklift operation and it forms the very basis of the Nissan TX’s design process.
The TX’s RRS (Risk Reduction System) makes a major contribution to the operator’s safety and well being and its wide range of designs and functions is incorporated as standard:

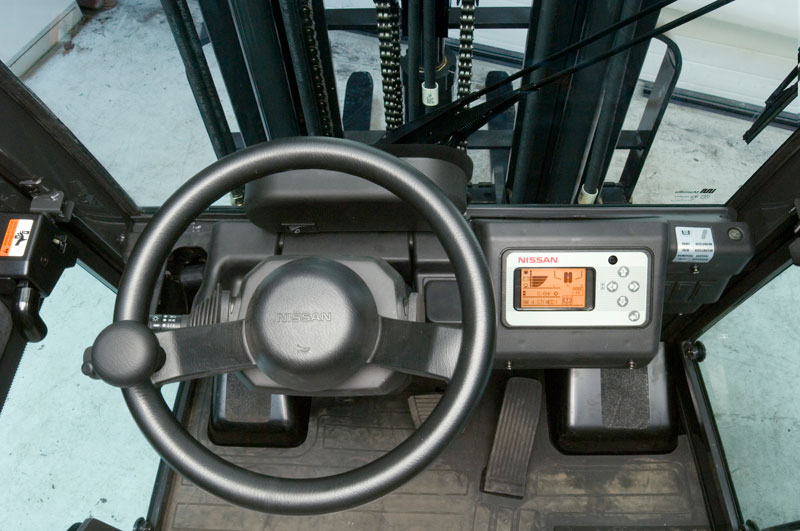

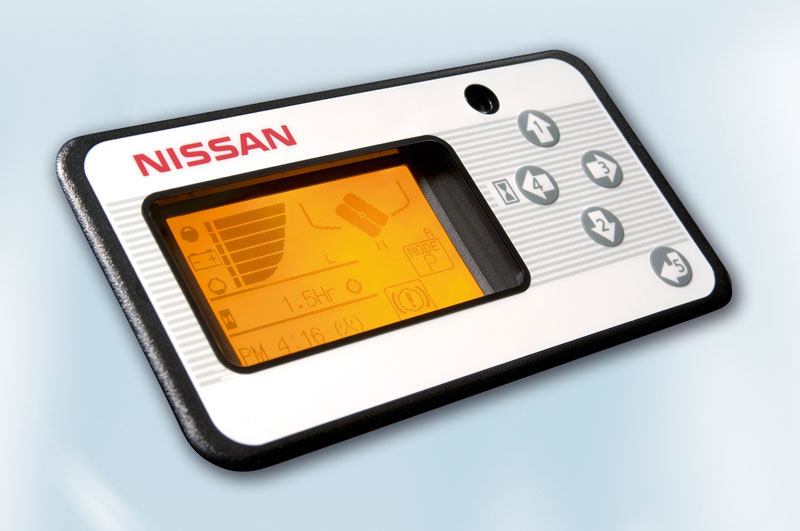

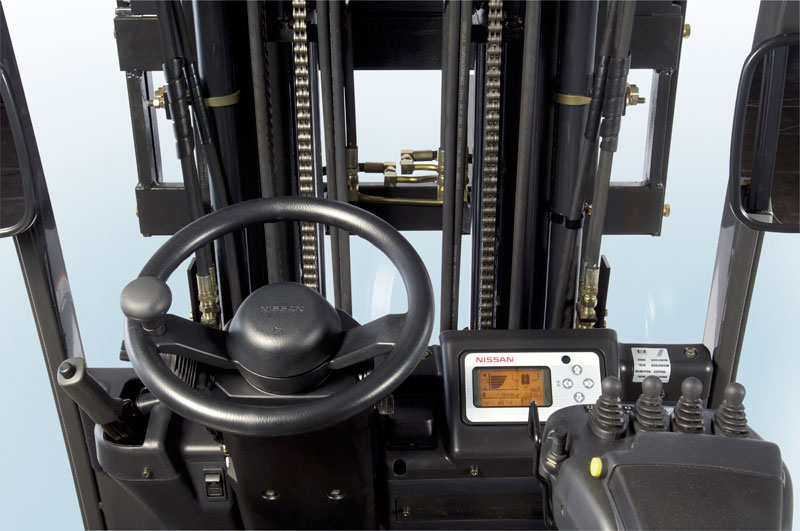

Parking brake with lock release button. The Nissan AC TECH controller continuously monitors and communicates the forklift’s truck status such as travel speed and steering wheel angle through the instrument panel. The five function keys can be used to adjust the truck’s performance to ensure the safest operating parameters according to operator experience and the load or handling conditions.
