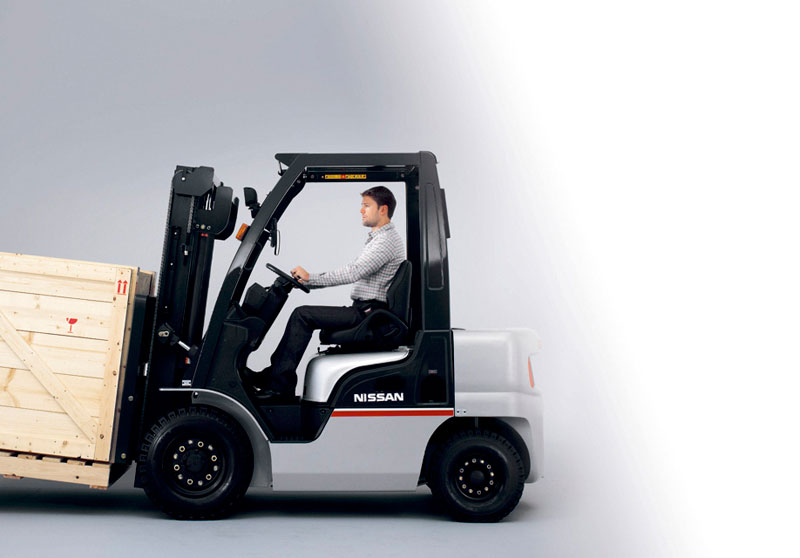

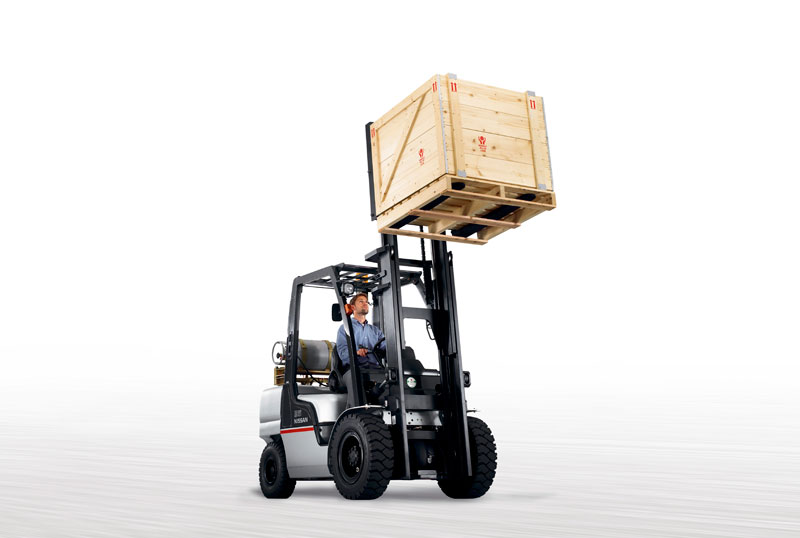

Nissan's advanced Compact LX Series
offers an array of new technology and
design to provide a safe, comfortable and
productive space for both you and your
colleagues in the surrounding area.
Protecting and sustaining the environment
is important to you and to us.
Nissan
approaches this responsibility with the
conviction that sound environmental policy
is at the core of sound business practice.
This is evidenced in the Compact LX Series'
electronic controlled engines, delivering
exceptionally low emissions levels - well
below the stringent requirements of the
USA Environmental Protection Agency
(EPA). It means that these forklift trucks
can be used in locations where some of the
strictest pollution controls are in force.

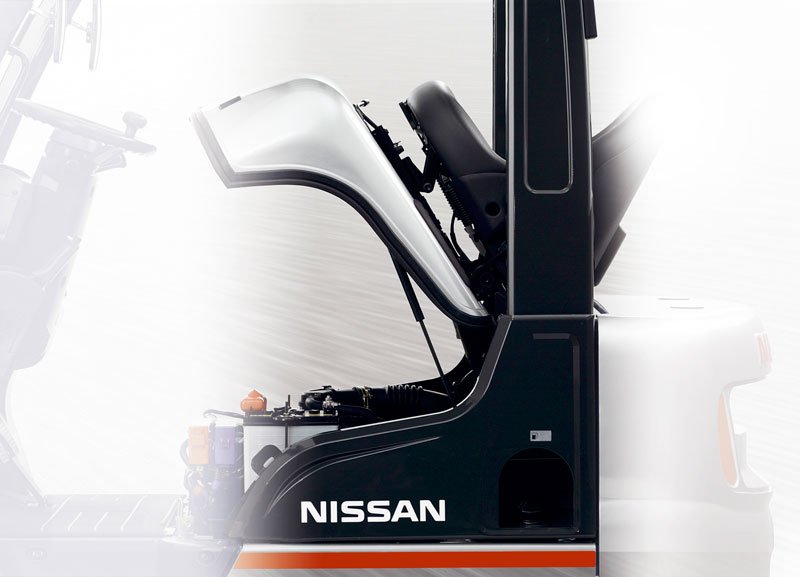

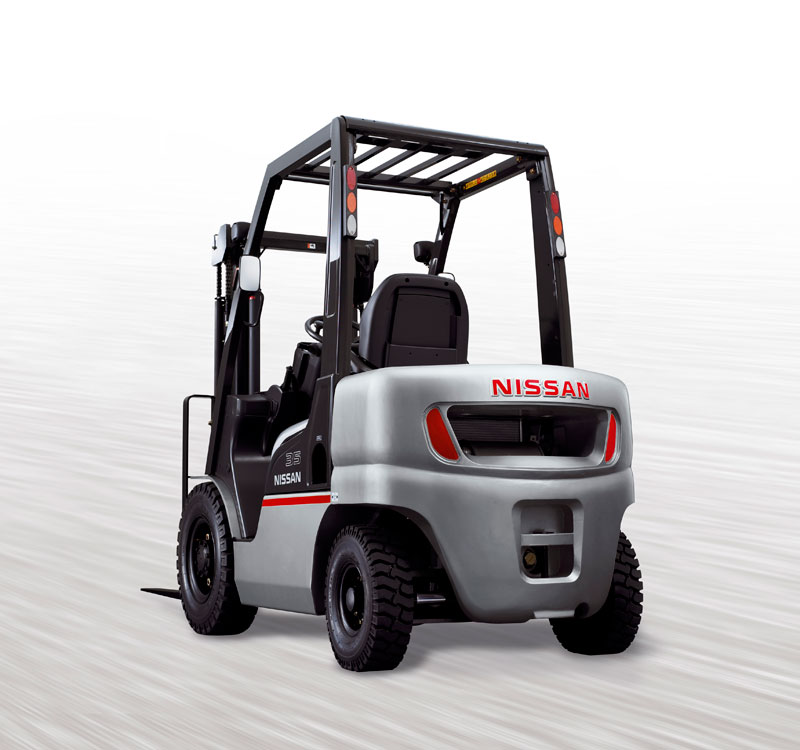

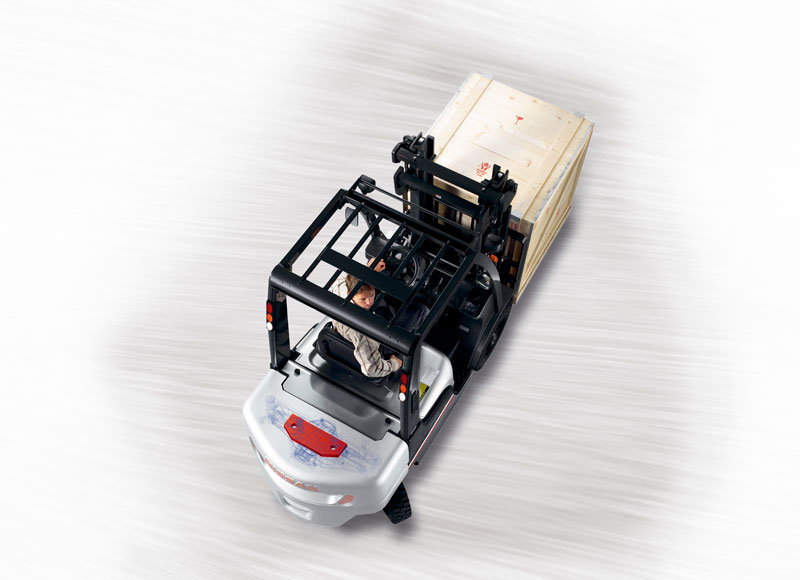

The exhaust system and counterweight have
been designed especially to direct heat
away from the operator's face when driving
in reverse.
The Cushioned Stability Control (CSC)
offers enhanced lateral stability which
provides confident driving control when
turning the forklift. Additionally, the CSC
system absorbs shocks thereby assisting
you to have a smooth, stable ride.
The seat actuated Auto-Mast Lock system,
provides optimum safety for a parked load
from the moment you leave the seat.

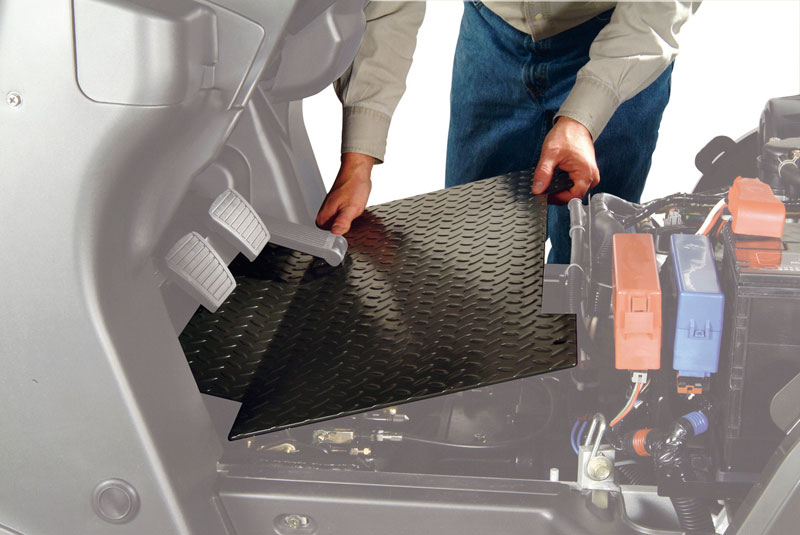

A non-skid step made from perforated steel
allow safe and secure entry and exit.
| Model (LPG/Diesel) | LX-35 - Pneumatic Tyres | ||
|---|---|---|---|
| Engine model | Nissan K25 (LPG) | 3.3L-4C (Diesel) | |
| Displacement | cc | 2488 | 3331 |
| Load capacity | kg | 3500 | 3500 |
| Load centre | mm | 500 | 500 |
| Overall width | mm | 1280 | 1280 |
| Turning radius | mm | 2390 | 2390 |
| Overhead guard height | mm | 2155 | 2155 |
| Length to fork face | mm | 2755 | 2755 |
The Compact LX series is a reflection of Nissan's continuing commitment to designing and delivering products of the highest value that incorporate the most advanced technology available in our industry. Backed by years of experience and expertise in the successful development of the latest ultra low emission engine systems and combined with our tradition of rugged, reliable construction, Nissan's Compact LX Series has become the new benchmark, others can only follow. .

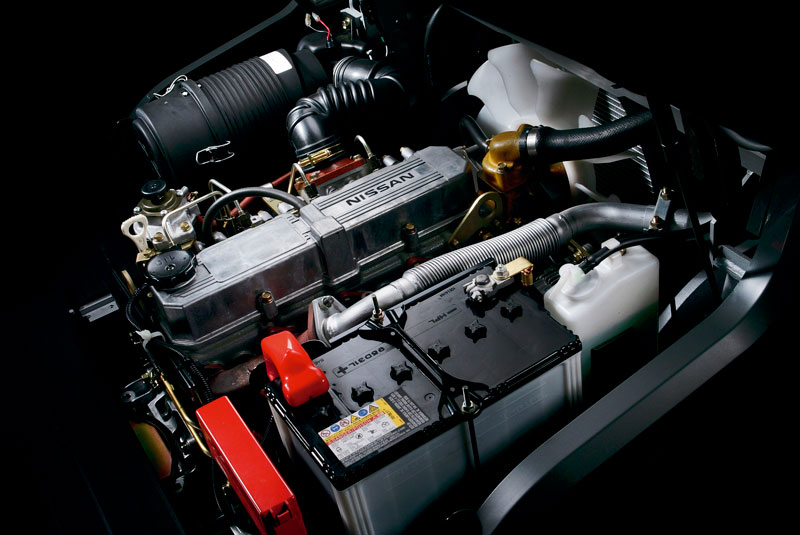

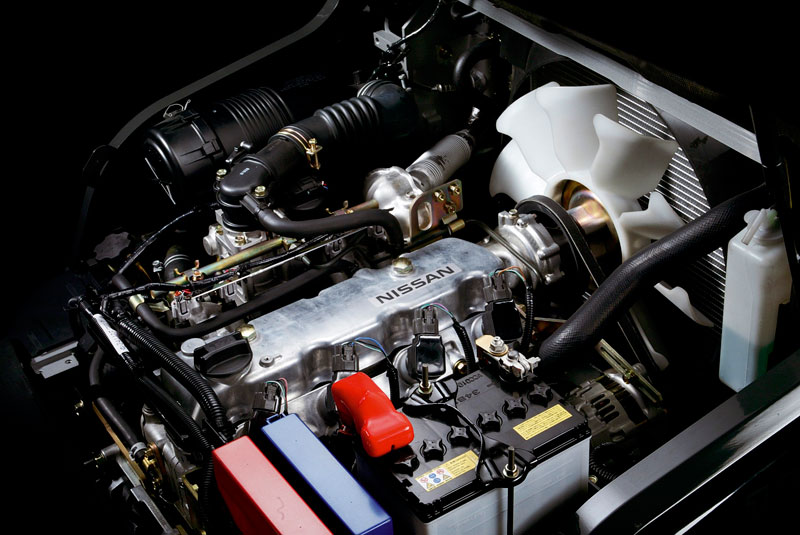

To ensure minimum exhaust emissions, the Compact LX series’ LPG fuel injection system relies on engine sensors and the Engine Control Module (ECM) to maintain and deliver the best air/fuel ratio within the combustion chamber. By accurately delivering the right ratio, the engine can produce precise combustion, resulting in better fuel efficiency as well as exceptionally low emissions
Based on Nissan’s extensive automotive experience, the Compact LX Series is equipped with the latest electronic controlled engines. Together with the standard 3-way catalyst, extremely low levels of NOx, HC and CO emissions are delivered for a cleaner, safer working environment. These exceed all USA EPA Tier I requirements, the world's most strict forklift regulations.
A rubber dampener between the rear axle and frame helps provide exceptional lateral stability while making turns. Best of all, this exclusive Nissan feature is maintenance free.
This standard seat-actuated system automatically locks lifting and tilting operations when the operator exits the truck, to prevent unsafe mast and fork operations. Once the operator is seated again, hydraulic functions can be fully utilized.
