| Pneumatic tyres | BX Series | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model name | BX-15 | BX-15 | BX-18 | BX-18 | BX-20 | BX-20 | BX-25 | BX-25 | |
| Load capacity @ 500mm | kg | 1500 | 1500 | 1800 | 1800 | 2000 | 2000 | 2500 | 2500 |
| Wheelbase | mm | 1270 | 1450 | 1270 | 1450 | 1450 | 1595 | 1450 | 1595 |
| Overall width | mm | 1120 | 1120 | 1120 | 1120 | 1165 | 1165 | 1165 | 1165 |
| Turning radius | mm | 1750 | 1970 | 1780 | 1970 | 1960 | 2140 | 2000 | 2140 |
| Length to fork face | mm | 2030 | 2220 | 2075 | 2220 | 2260 | 2445 | 2325 | 2445 |
| Pneumatic tyres | BX Series | ||||
|---|---|---|---|---|---|
| Model name | BX-15 | BX-18 | BX-20 | BX-25 | |
| Battery capacity (std) | V/Ah | 48/485 | 48/485 | 48/565 | 48/565 |
| Battery capacity (high) | V/Ah | 48/545 | 48/545 | 48/700 | 48/700 |
| Battery capacity (lwb) | V/Ah | 48/700 | 48/700 | 48/865 | 48/865 |
| Electric motor (driving) | kW | 9,0 x 1 | 9,0 x 1 | 12,0 x 1 | 12,0 x 1 |
| Electric motor (lifting) | kW | 11,0 | 11,0 | 13,5 | 13,5 |
| Cushion Tyres | BX Series | |||||
|---|---|---|---|---|---|---|
| Model name | BX-15 | BX-18 | BX-20 | BX-25 | BX-30 | |
| Load capacity @ 500mm | kg | 1500 | 1750 | 2000 | 2500 | 3000 |
| Wheelbase | mm | 1220 | 1220 | 1260 | 1260 | 1360 |
| Overall width | mm | 970 | 970 | 1070 | 1070 | 1100 |
| Turning radius | mm | 1800 | 1800 | 1845 | 1875 | 2060 |
| Length to fork face | mm | 2045 | 2050 | 2155 | 2190 | 2365 |
| Cushion Tyres | BX-Series | |||||
|---|---|---|---|---|---|---|
| Model name | BX-15 | BX-18 | BX-20 | BX-25 | BX-30 | |
| Battery capacity (std) | V/Ah | 48/450 | 48/450 | 48/680 | 48/680 | 48/850 |
| Battery capacity (high) | V/Ah | 48/600 | 48/600 | 48/800 | 48/800 | 48/1000 |
| Electric motor (driving) | kW | 9,0 x 1 | 9,0 x 1 | 12,0 x 1 | 12,0 x 1 | 12,0 x 1 |
| Electric motor (lifting) | kW | 11,0 | 11,0 | 13,5 | 13,5 | 13,5 |

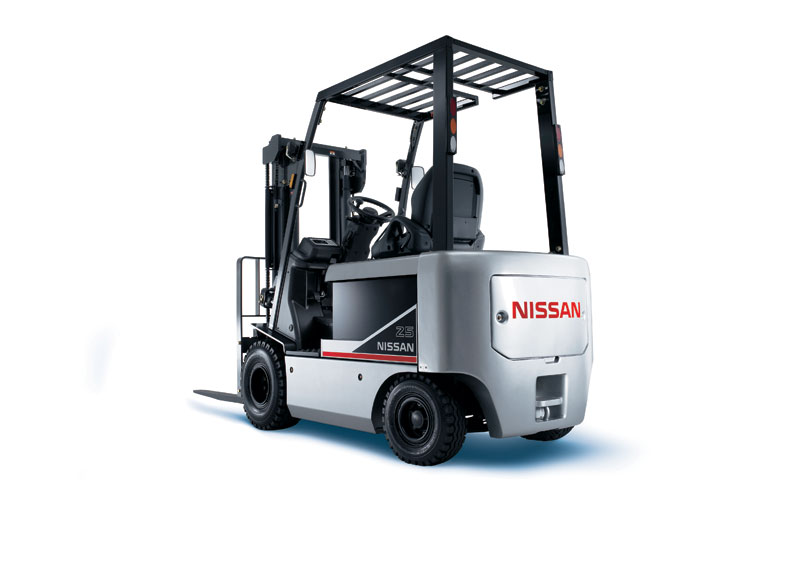

Nissan Forklift has found a perfect balance for the owner, the operator, and the environment in the new BX Series. Ready to take centre stage in the future of load handling operations, the BX Series features a wide variety of advanced features, such as a fully AC-powered system. Percharge operating hours are remarkably high, as well as power and travel speeds, resulting in an exceptionally productive forklift. And it’s not just the basic performance of these battery-powered forklifts that has lifted them to the top of the market. Every aspect of its engineering and design – including the features available to its users – has been carefully researched. The proven leader Nissan’s new BX Series … a progressive evolution of the electric-powered forklift.

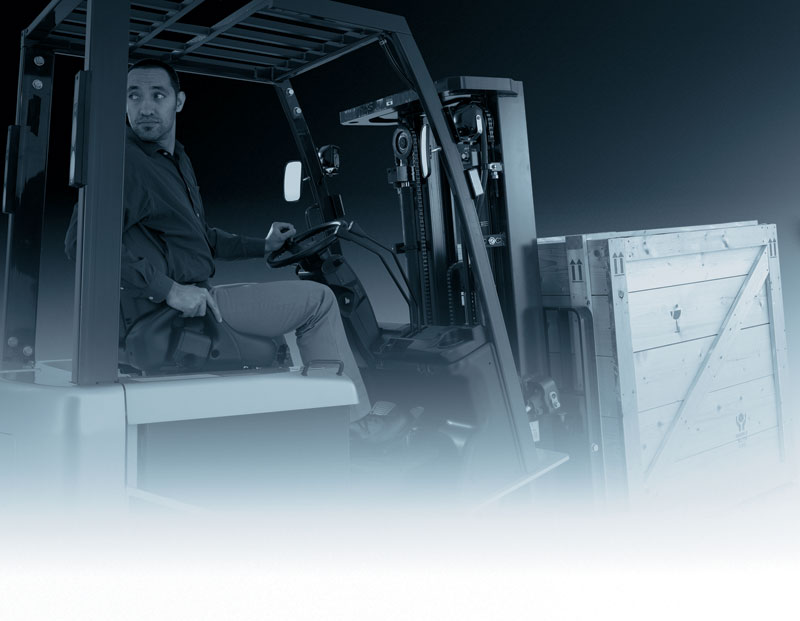

When it came to the planning and design of Nissan’s BX Series workspace, thoughtful attention was given to the operators’ well being. Despite the many activities that occur throughout the operator’s shift, concentration on his job is critical. For that reason, a stress-free environment supported by the BX Series' low noise levels is of absolute importance.
It is a promise we can keep. The BX Series provides uncompromising speed and performance thanks to its robust drive system that includes an AC-powered drive motor, and a high efficiency controller. Using a four-digit Personal Identification Number (PIN), you can choose from three preset performance modes (economy/power/high) and it is even possible to select the performance settings yourself. Regardless of which mode is chosen, the BX Series can be fully optimised to achieve long operating hours and low energy consumption.
The QX Series is designed for more comfort and easy operation. Conceived with the requirements of the operator in mind, the open operator workplace and ideally positioned dashboard form a comfortable working environment, leaving the operator free to concentrate on the task at hand. The result is greater efficiency and higher productivity. Other features contributing to the comfort and ease of operation are the car-type pedal lay-out, the spacious legroom, the low step, the grab handle and the comfortable seat. But there is far more.
An efficient, comfortable workplace doesn’t mean caution should take a back seat. The BX Series offers a large package of standard features to help provide operational boundaries for your drivers.
Safety is ensured by the special Nissan Forklift RRS (Risk Reduction System) which incorporates an extensive package of features:
True to Nissan’s traditions, the QX Series has been designed to provide maximum performance and reliability. Nissan’s reputation for quality and easy serviceability, resulting in low maintenance costs, is highly regarded throughout the industry.
